Variants
7192 | Shower system
Find local retailer

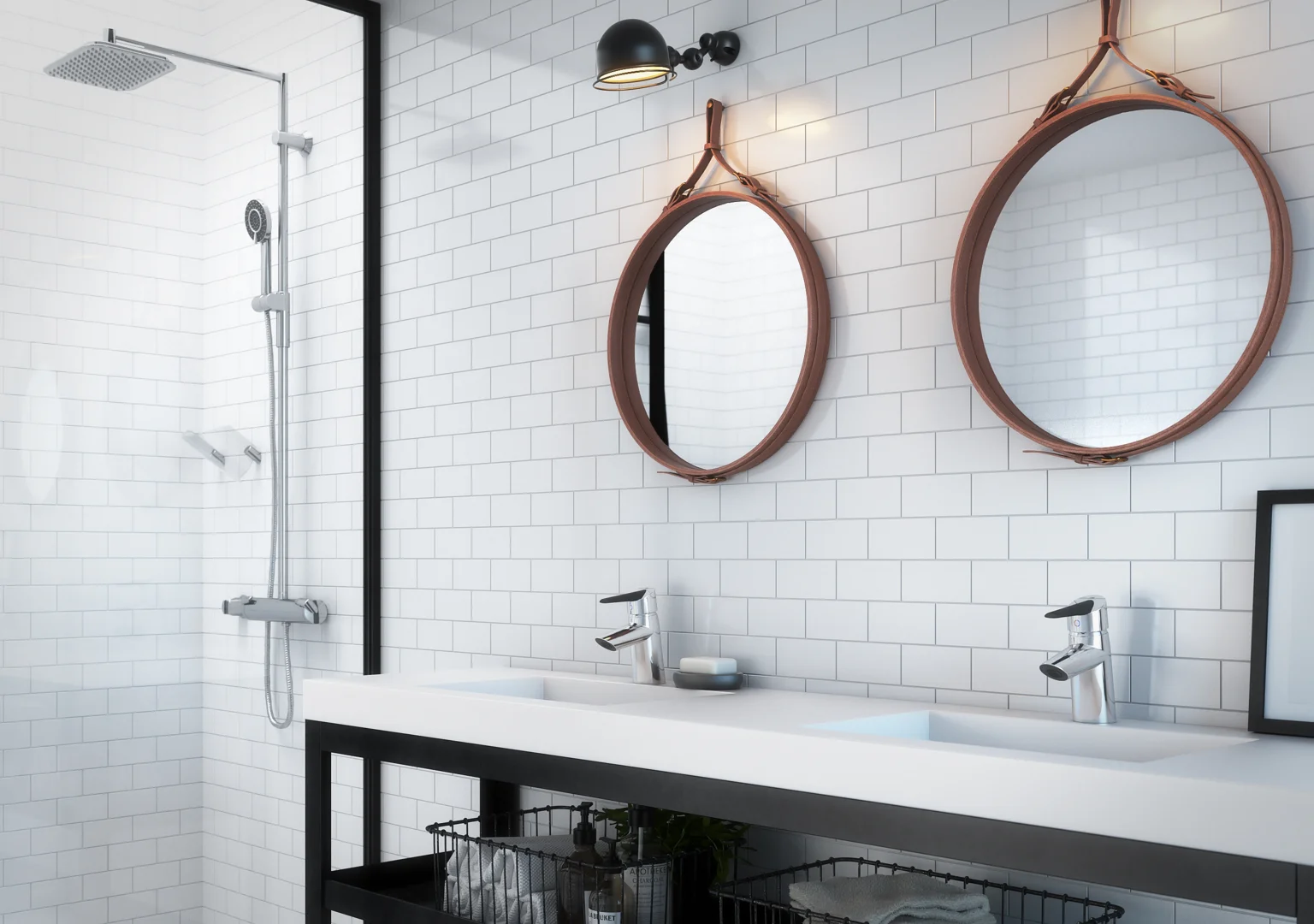

Oras Optima
Thermostatic rain shower faucet with easy-grip handles. Easy-to-use diverter and temperature limiter in the handle. EcoFlow control. Hand shower with multi jet adjustment for more comfortable shower experience and easy-to-clean lime-free strainer, shower holder and wall bracket. The faucet is equipped with litter filters and non-return valves.
Features
- Diverter Turn operated diverter, Integrated into flow control handle
- Lever/Handle Temperature control handle, Flow control handle, Easy-Grip surface, Safety feature for water temperature
- Mechanical parts Litter filter(s), Non-return valve(s), Thermostatic cartridge for automatic temperature control
- Number of spray functions 3 spray functions
- Shower parts Hand shower, Shower rail, Overhead shower, Adjustable shower rail bracket, Soap dish, Shower holder, Shower hose (2000 mm), Eco flow control, Rotatable ball joint connection
- Color Chrome
- Temperature Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat
Flow attributes
- Eco-flow at 300 kPa 0.21 l/s
- Flow-rate at 300 kPa 0.27 l/s
- Pressure loss with flow (0.2 l/s) 160 kPa
Technical properties
- Backflow prevention (EN1717) EB
- Connection size G1/2
- Hot water supply max. +80°C
- Installation width 150 ± 3 mm
- Material Brass/Plastic
- Working pressure 100 - 1000 kPa
Regulations
- EN standard EN 1111, EN 1112, EN 1113
- Noise class I (ISO 3822)
Approvals and Declarations
- STF EUFI29-20002662-TH4
+SP7157(2013)+SP65159101+SP7192U-33.webp)
SP7192 Shower system
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Flow control handle |
|
|
| 02 |
|
Diverter and cartridge |
|
Download |
| 03 |
|
Litter filters, G1/2, DN15 |
|
|
| 03 |
|
Filter sealing, G3/4, DN20 |
|
|
| 04 |
|
O-ring kit |
|
|
| 05 |
|
Temperature control handle |
|
|
| 06 |
|
Thermostatic cartridge |
|
Download |
| 07 |
|
Slide for shower rail (Chrome) |
|
|
| N.I. |
|
Shower pipe holder (Chrome) |
|
|
_CatalogRender.webp "Oras Optima, Hand shower, 272020")
_CatalogRender.webp "Oras Optima, Overhead shower, 257 x 197 mm, 272080")
