Variants
3933FH | Kitchen faucet
Find local retailer

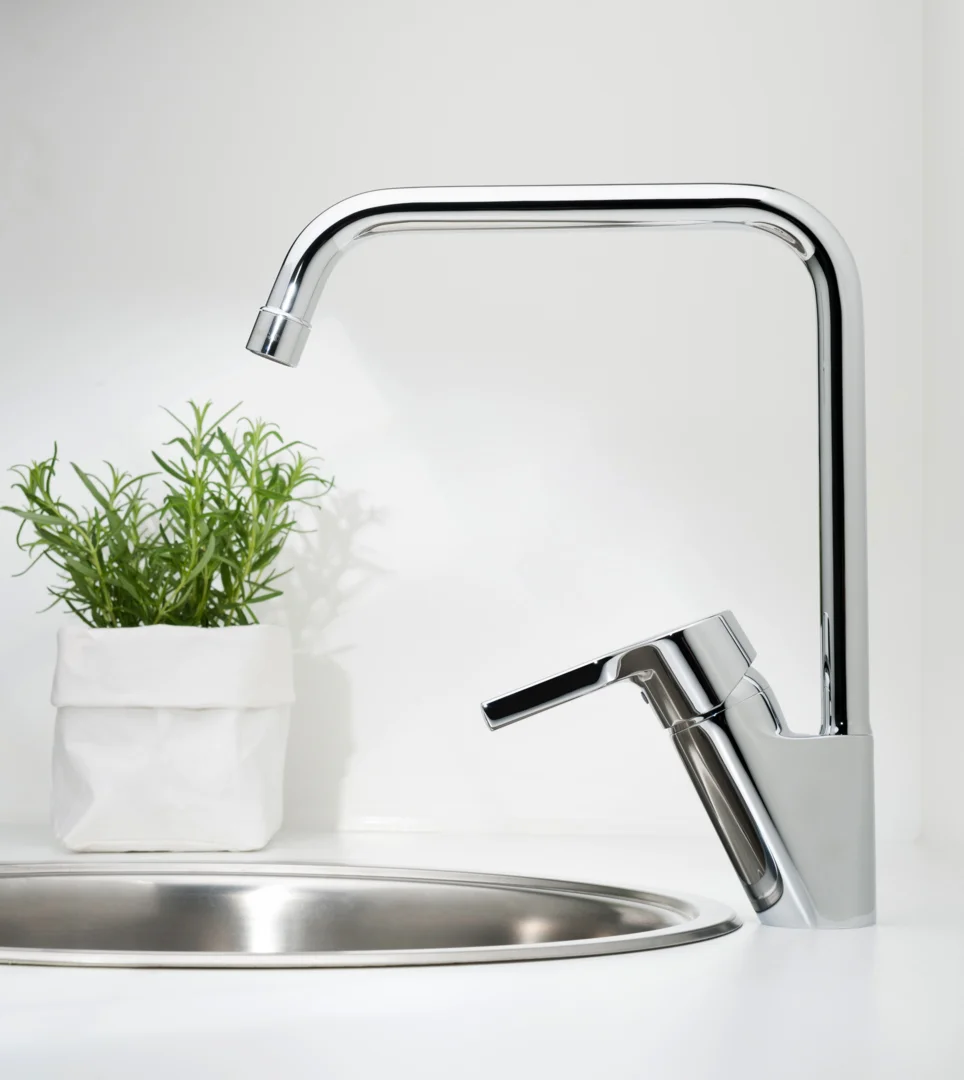

Oras Saga Style
Oras Saga Style kitchen faucet with high spout. Swivel spout and aerator. Spout's swing angle is factory preset at 120° (can be limited to 60°) There are also in-built limitation options for water temperature and maximum flow-rate. 3S-Installation system.
F= with flexible pipes
Features
- Connection Flexible inlet pipes
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 35 mm ceramic cartridge for flow and temperature control
- Advanced features 3S-installation system for safe and simple mounting
- Spout Swivel range limiting option
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate
Flow attributes
- Flow-rate at 300 kPa 0.17 l/s
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +80°C
- Material Brass
- Projection 221 mm
- Working pressure 50 - 1000 kPa
Regulations
- EN standard EN 817
- Noise class I(ISO3822)
Approvals and Declarations
- KIWA SE 1444
+56502203.webp)
SP3933FH Kitchen faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Aerator, M22x1 STD CC A (Chrome) |
|
|
| 02 |
|
Lever
(Chrome)
Discontinued
|
|
|
| 03 |
|
Covering cap (Chrome) |
|
|
| 04 |
|
Temperature adjustment limiter |
|
|
| 05 |
|
Tightening nut, M40x1 |
|
|
| 06 |
|
Cartridge, 3.5 Classic |
|
Download |
| 07 |
|
High spout, L=255 (Chrome) |
|
|
| 08 |
|
Spout overturning stopper, 60°/0° |
|
Download |
| 08 |
|
Spout overturning stopper, 120° |
|
Download |
| 09 |
|
Sealing kit for spout |
|
Download |
| 10 |
|
Bottom seal |
|
|
| 11 |
|
Supporting plate, 100x60mm |
|
|
| 12 |
|
Fixing screw, M8x1, L=130 |
|
|
| 13 |
|
Fixing set |
|
Download |
