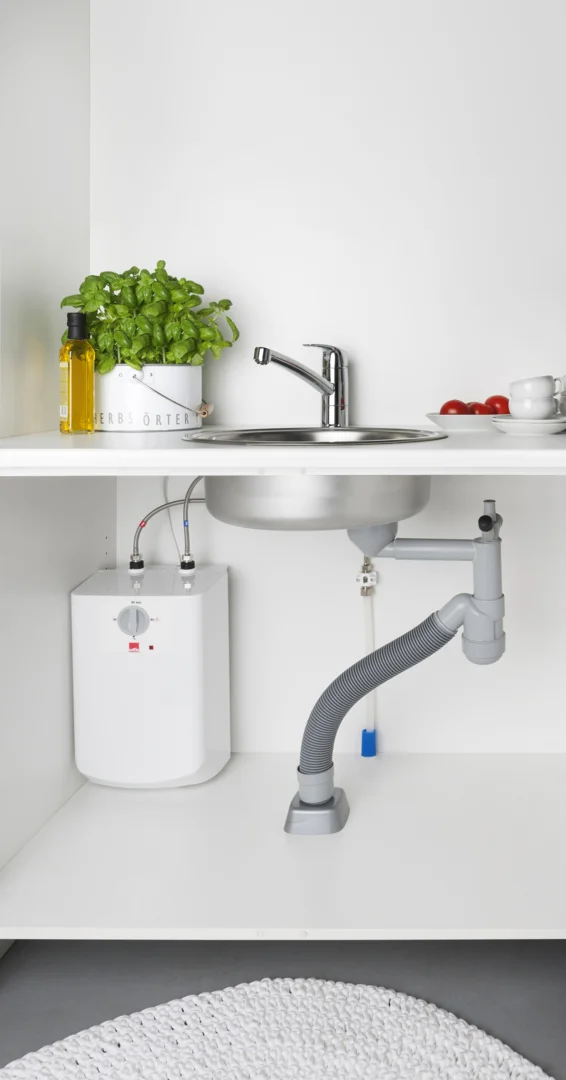

Oras Safira
Kitchen faucet for summer house and water heater. Swivel spout and aerator. Spout’s swing angle is factory preset at 100° (can be limited to 40°– 80°). Maximum flow-rate 5 l/min. Due to the heating of water, water dripping from the aerator is a feature of this product and should not be prevented. The aerator may not be changed or supplemented with additional components.Plug in, unpressurized water heater, 5 l. Easy to install. Range of use +35° – 85°C (recommendation +65°C). In order to prevent frost damage, the faucet and the water heater must be emptied. This water heater is only allowed to operate with the original Oras summer house faucet.Warning!Water heater can heat the water up to +85°C. Beware of the instant scalding hot water from the faucet.The faucet and the water heater should not be installed separately.
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Extensions Water heater unit
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control, Litter filter(s)
- Advanced features 3S-installation system for safe and simple mounting
- Spout Swivel spout, Swivel range limiting option, Profile construction
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate
- Flow-rate at 300 kPa 0.083 l/s
- Pressure loss with flow (0.1 l/s) 435 kPa
- Backflow prevention (EN1717) AA
- Connection size G3/8
- Hot water supply max. +70°C
- Material Brass
- Projection 211 mm
- Working pressure 50 - 1000 kPa
- EN standard EN 817
- Noise class I (ISO 3822)
.webp)
SP1023F Kitchen faucet for summer house
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Lever (Chrome) |
|
|
| 02 |
|
Covering cap (Chrome) |
|
|
| 03 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
| 04 |
|
Cartridge, low pressure |
|
Download |
| 05 |
|
Spout, L=210
(Chrome)
Discontinued
|
|
|
| 06 |
|
Spout overturning stopper, 120° |
|
|
| 06 |
|
Spout overturning stopper, 40°-80° |
|
Download |
| 07 |
|
Fixing screw, M8x1, L=130 |
|
|
| 08 |
|
Fixing set |
|
Download |
| 09 |
|
Flow limiter, 5 L/min |
|
|
| 10 |
|
Litter filters |
|
|
| 11 |
|
Water star, M24x1 (Chrome) |
|
|
| 12 |
|
Bearing ring |
|
|
| 13 |
|
X-sealing set |
|
Download |
| 14 |
|
Bearing ring |
|
|
| 15 |
|
Bottom seal |
|
|
| 16 |
|
Supporting plate, 100x60mm |
|
|
| 17 |
|
Water heater |
|
|
