Features
- Connection Direct connection, Internal thread
- Diverter Turn operated diverter, Integrated into flow control handle
- Lever/Handle Temperature control handle, Flow control handle, Eco feature for water flow
- Mechanical parts Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
- Number of spray functions 1 spray function
- Shower parts Hand shower, Shower rail, Overhead shower, Adjustable shower rail bracket, Shower hose (1750 mm), Variable fixing points, Rotatable ball joint connection, Anti limescale technology (easy to clean)
- Shower spray ECO - Water saving stream
- Advanced features Flexible length / can be shortened
- Color Matt black
- Temperature Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

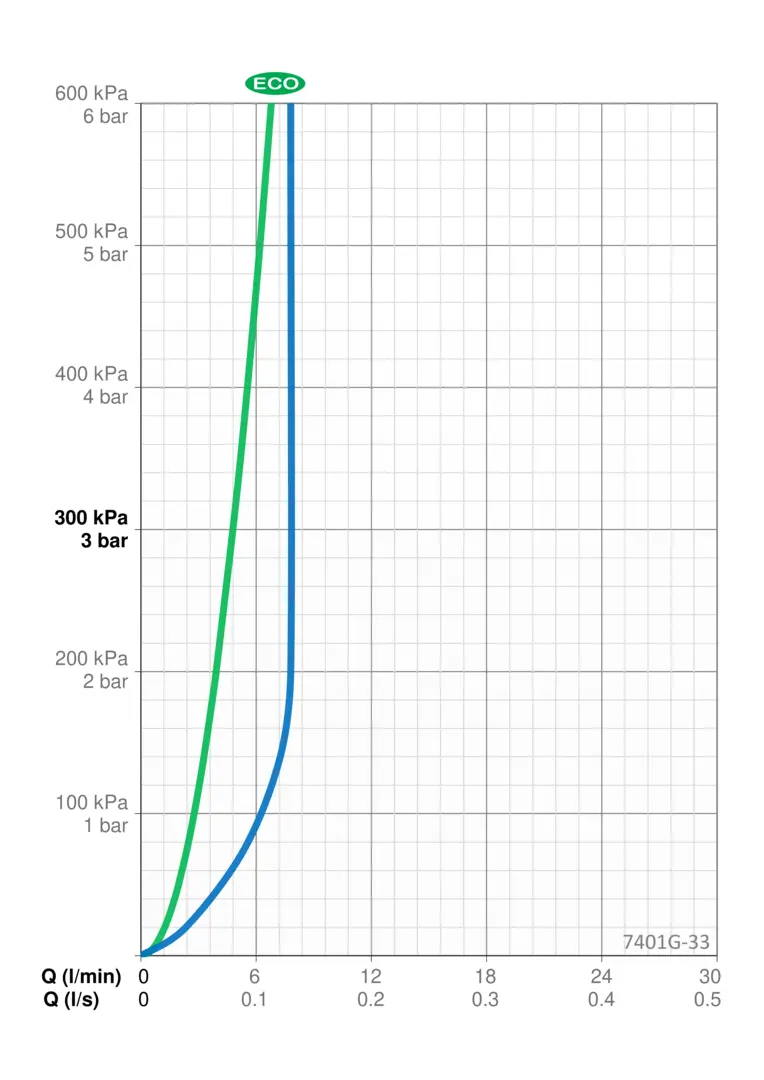

Flow attributes
- Eco-flow at 300 kPa 0.08 l/s
- Flow-rate at 300 kPa (with flow controller) 0.13 l/s
Technical properties
- Backflow prevention (EN1717) EB
- Connection size G3/4
- DN-size (nominal dimension) DN15
- Hot water supply max. +65°C
- Installation width 150 ± 15 mm
- Material Brass
- Projection 435 - 460 mm
- Working pressure 100 - 1000 kPa
Regulations
- EN standard EN 1111, EN 1112, EN 1113
- Noise class I (ISO 3822)
Approvals and Declarations
- SE Energy Mark 1831
SP7401G-33 Shower system
Ask pricing from your local retailers.

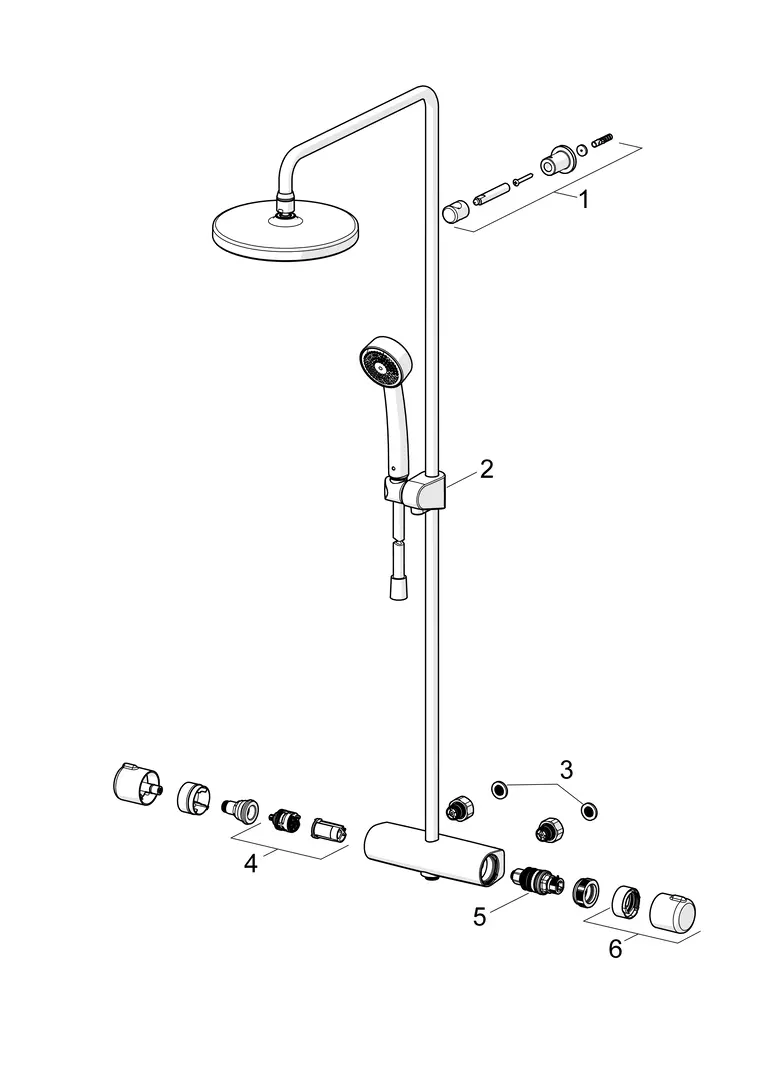

| Spare parts | Code | Spare part guide | ||
| 01 |
|
Shower pipe holder (Matt black) |
|
Download |
| 02 |
|
Slide for shower rail (Matt black) |
|
|
| 03 |
|
Filter sealing, G3/4, DN20 |
|
|
| 04 |
|
Diverter and cartridge |
|
Download |
| 05 |
|
Thermostatic cartridge |
|
Download |
| 06 |
|
Temperature control handle (Matt black) |
|
|
