Variants
3031F-81 | Kitchen faucet with dishwasher valve, 3 V
Find local retailer

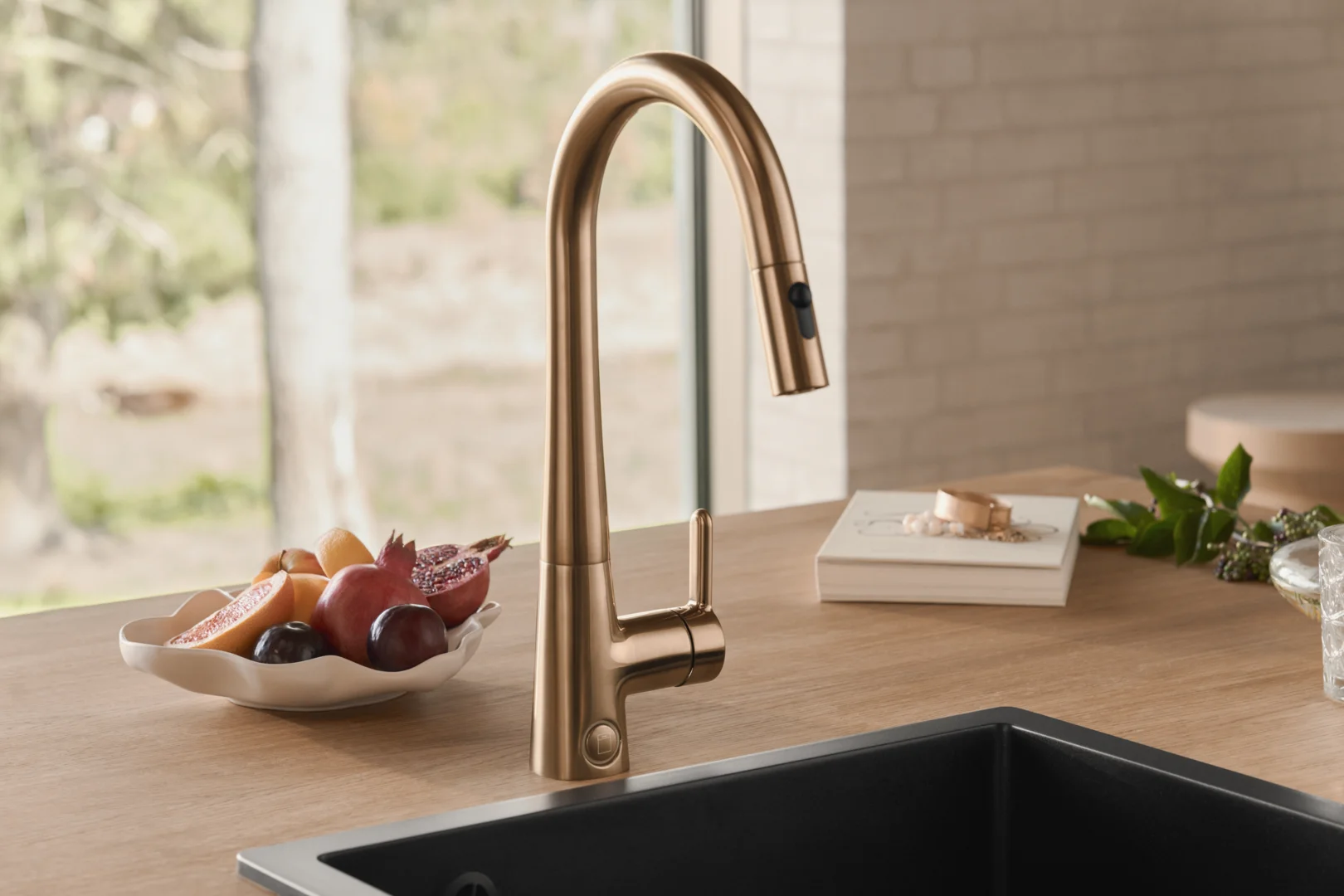

Oras Inspera Comfort+
Kitchen faucet with smart dishwasher valve and with pull-out spout. Swivel spout with pull-out spout/spray and aerator. Spout’s pull-out length can be fixed. Spout’s swing angle is factory preset at 120° (can be limited to 60°-0°). Dishwasher valve closes automatically after 4 or 12 hours (one push opens the valve for 4 hours, pushing for 5 seconds opens the valve for 12 hours). Battery operated, 3 V. There are also in-built limitation options for water temperature and maximum flow-rate.
F = with flexible pipes
Features
- Additional features Soft- and Needle-Spray
- Connection Flexible inlet pipes
- Dishwasher valve Electronic stop valve for external equipment
- Electronic parts Solenoid valve, External control unit, Light indicated function(s), Low battery indicator
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control, Litter filter(s)
- Number of spray functions 2 spray functions
- Spout Swivel spout, Pull-out model, Swivel range limiting option
- Color Brushed bronze
- Temperature Limitation option for maximum temperature and flow-rate
Software settings
- Dishwasher valve open period 4 h / 12 h
Flow attributes
- Flow-rate at 300 kPa 0.16 l/s
- Pressure loss with flow (0.2 l/s) 490 kPa (70% qv = 240 kPa)
Technical properties
- Connection size G3/8
- Hot water supply max. +70°C
- Material Brass
- Projection 231 mm
- Working pressure 50 - 1000 kPa
Electronics
- Battery AA 1.5 V Lithium x 2
- Bluetooth version 5.x (D060577)
Regulations
- EU Directives Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
- EN standard EN 817, EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
- Noise class I (ISO 3822)
- Protection class IP 55
SP3031F-CLR Kitchen faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Aerator |
|
|
| 02 |
|
Hose, L=1500, G1/2-M14x1 |
|
|
| 03 |
|
Spout overturning stopper, 60°/0° |
|
|
| 04 |
|
Cartridge |
|
|
| 05 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
| 06 |
|
Supporting plate, 100x60mm |
|
|
| 07 |
|
Fixing set |
|
|
| 08 |
|
Pilot valve, 3 V |
|
Download |
| 09 |
|
Membrane for solenoid valve |
|
Download |
| 10 |
|
Gasket, 18.5/12x2 EPD |
|
|
| 11 |
|
Litter filters |
|
|
| 12 |
|
Battery, 1.5 V AA Lithium |
|
|
| 13 |
|
Control unit, 3 V, Bluetooth |
|
|
